Phased-Array · Beamforming
Multi-Channel TR Module
Integrated multi-channel transmit/receive modules for phased-array radar and beamforming systems. Covering 0.3–8 GHz with per-channel phase shifting and digital attenuation, fast T/R switching, and compact, ruggedized packaging.
High Power
Overview
| Model Number | Frequency (GHz) | Config. | Output Power (W) | Gain (dB) | Compare / Enquire |
|---|---|---|---|---|---|
| BETR-0.3G0.85G-2CH-100W | 0.3~0.8 | 2-Ch | ≥ 100 | ≥ 25 | |
| BETR-0.8G2G-4CH-20W | 0.8~2.0 | 4-Ch | ≥ 25 | ≥ 20 | |
| BETR-0.8G2G-4CH-25W | 0.75~2.05 | 4-Ch | ≥20 | ≥25 | |
| BETR-2G4G-4CH-20W | 1.95~ 4.05 | 4-Ch | ≥20 | ≥25 | |
| BETR-4G8G-4CH-20W | 3.95~ 8.0 | 4-Ch | ≥20 | ≥25 |
Beamforming
Overview
| Model Number | Frequency (GHz) | Configuration | T/R Switching Time | Phase Shift Step | Compare / Enquire |
|---|---|---|---|---|---|

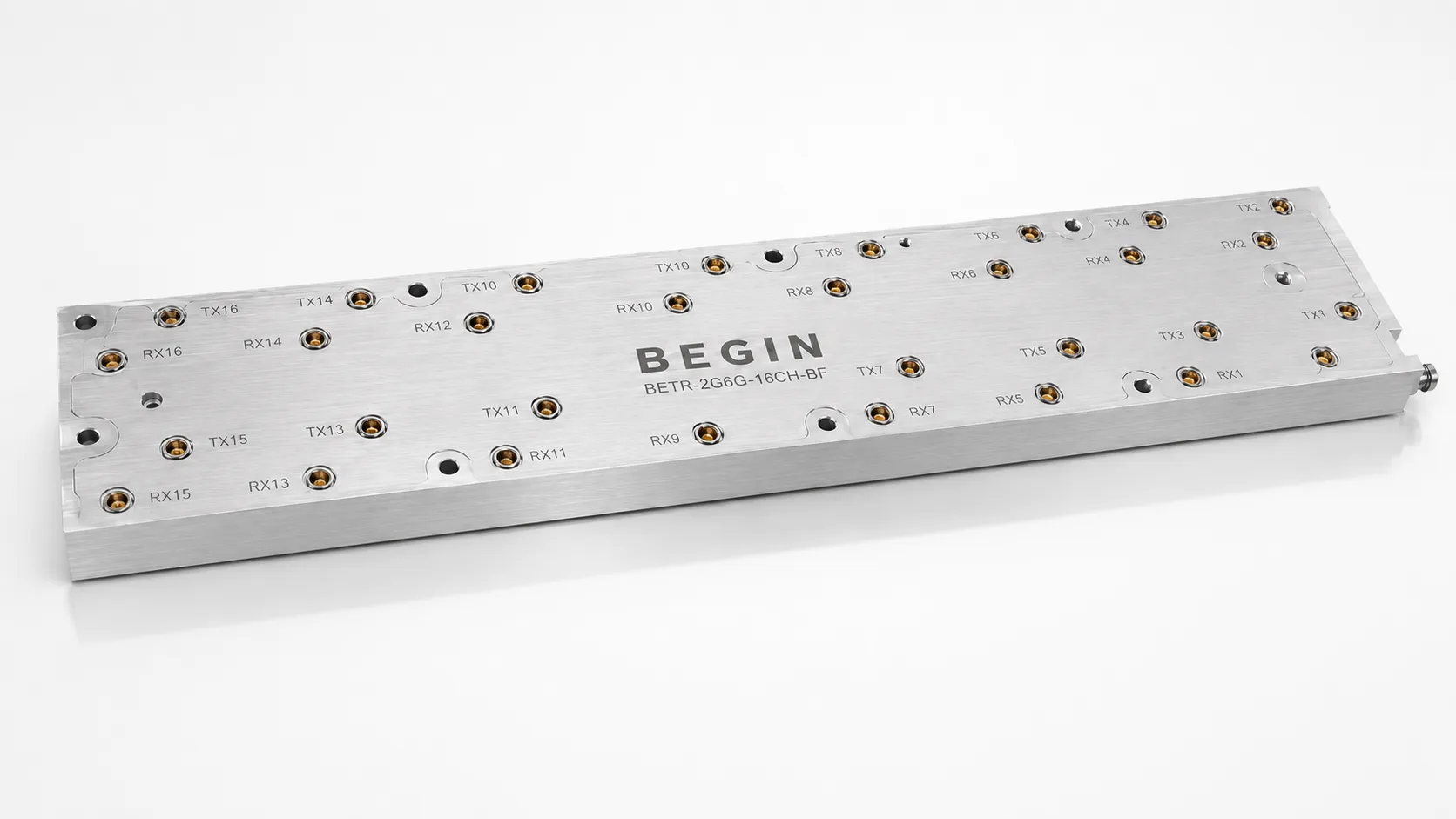

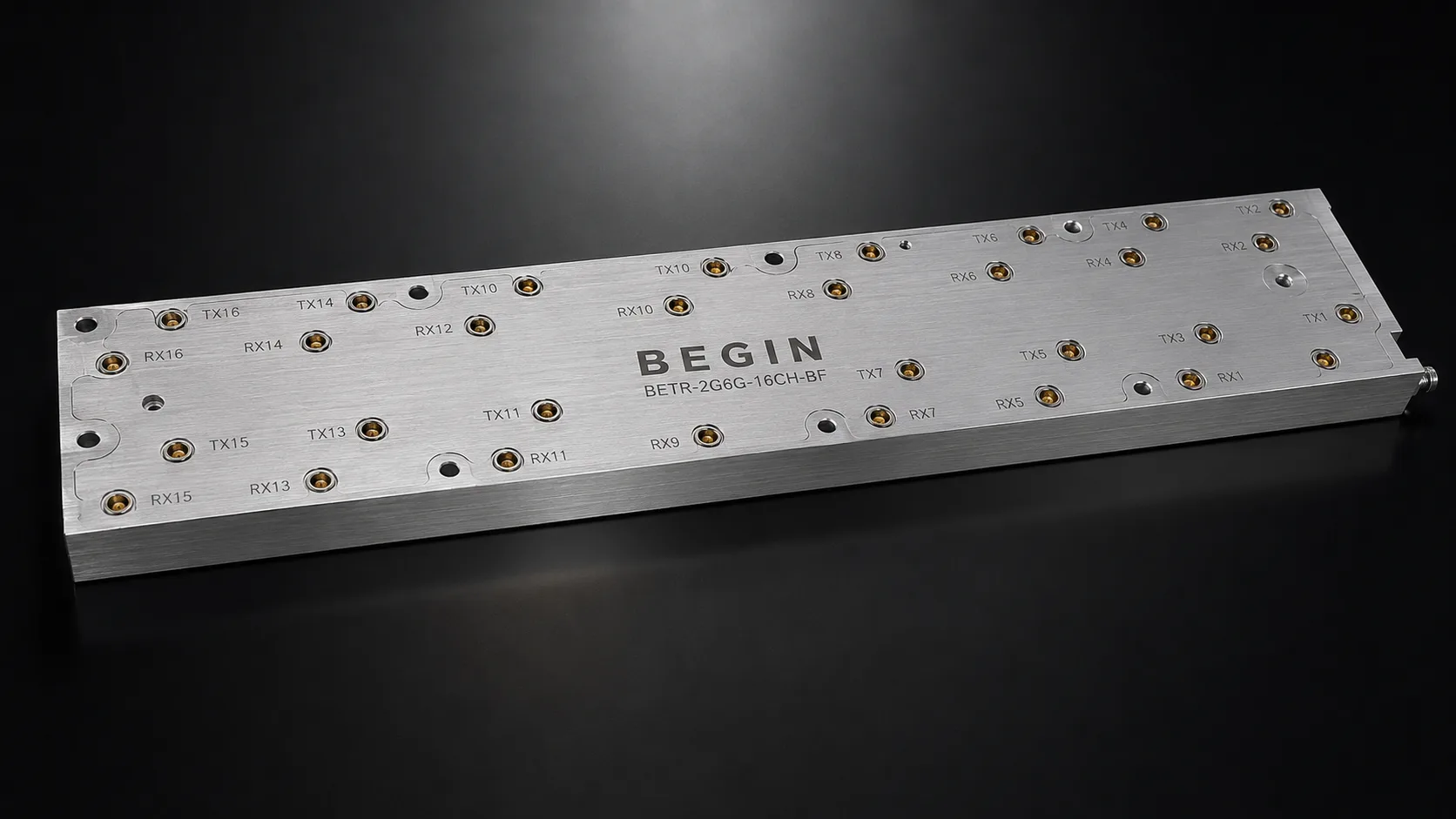

| BETR-2G6G-16CH-BF | 2~6 | 16-CH Receive 16-CH Transmit | 200 ns | 5.625° |
